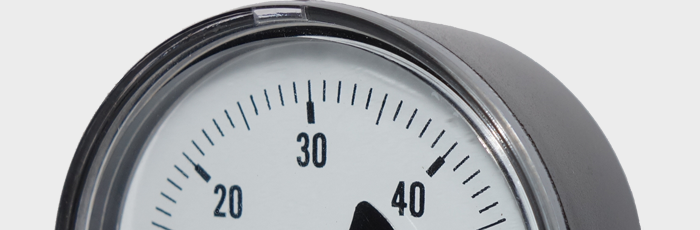

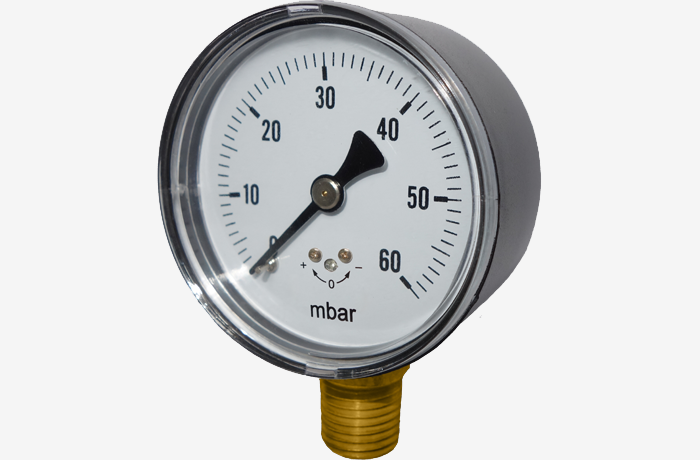

Black finished steel capsule gauge with SNAP-IN polycarbonate (PC) lens, BRASS diaphragm, internals, socket, and connector.
Basic description:
- black finished steel housing
- snap-in polycarbonate (PC) lens
- phosphor bronze diaphragm
- brass internals, socket, and connector
- black finished aluminium pointer
- aluminium dial face with zero adjustment knob
- sealing types: NPT, BSPP, and BSPT
- custom designs are available upon request
Application areas:
- pressure measurement of both corrosive, and non-corrosive gaseous media
- pressure measurement of natural gases, air flow, with added leak detection
- vacuum pumps, air compressors, air filters, gas burners, and vacuum ovens
- fluid, or gaseous media, that do not clog connection ports, or corrode copper alloy
- suction regulators, and respirators
- low pressure pneumatic systems, and many more
Table of specifications:
Standard features
| Diameter Sizes | 63mm (2.5") | 70mm (3.0") | 100mm (4.0") |
| Range |
-600mbar | 600mbar |
-600mbar | 600mbar |
-600mbar | 600mbar |
| Accuracy | ±1.6% | ±1.6% | ±1.0% |
Optional features
| Diameter Sizes | 63mm (2.5") | 70mm (3.0") | 100mm (4.0") |
| Bottom | V | V | V |
| Center back | V |
** Custom designs are available upon request **
