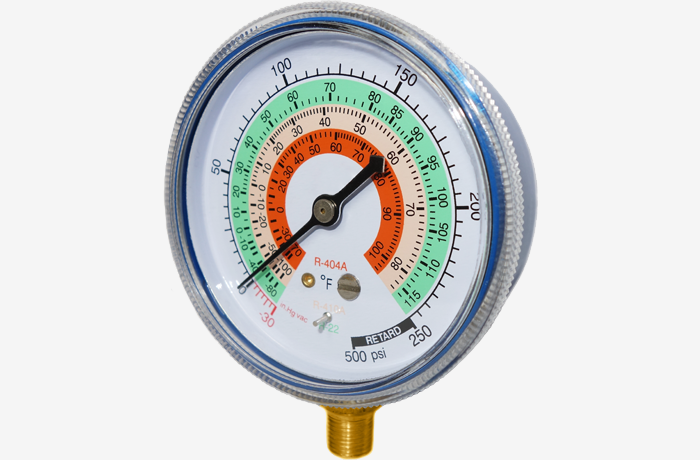

Blue color steel (FLs70D), or plastic (FLp70D) refrigeration gauge with TWIST-ON polycarbonate (PC) lens, BRASS internals, socket, and connector.
Basic description:
- blue color steel (FLs70D), or plastic (FLp70D) housing for easy identification
- twist-on polycarbonate (PC) lens
- flutterless movement
- recalibration screw on dial face
- brass internals, socket, and connector
- socket restrictor
- aluminium pointer
- aluminium multicolored dial face
- safety retard mechanism
- sealing types: NPT, BSPP, and BSPT
- custom designs are available upon request
Application areas:
- pressure measurement of liquid media that do not clog connection ports, or corrode copper alloy
- refrigeration equipment and refrigeration recovery equipment
Table of specifications:
Standard features
| Diameter Sizes | 68mm (2.5") | 80mm (3.0") | 100mm (4.0") |
| Range |
Vacuum | 500psi |
Vacuum | 500psi |
Vacuum | 500psi |
| Accuracy | ±1.6% | ±1.6% | ±1.0% |
Optional features
| Diameter Sizes | 68mm (2.5") | 80mm (3.0") | 100mm (4.0") |
| Luminescent dial | V | V | V |
| Silicone dampened movement |
V | V | V |
** Custom designs are available upon request **
