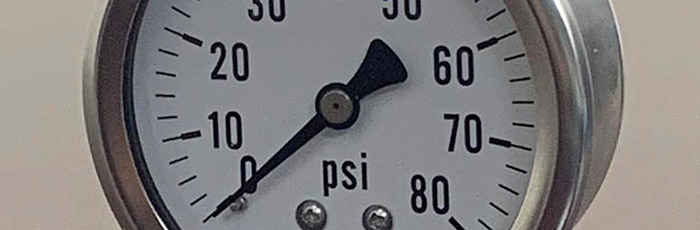

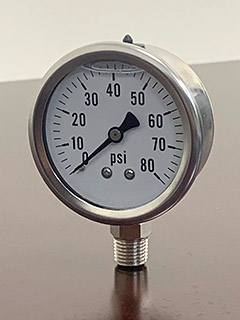

Stainless steel liquid fillable gauge with CRIMP ring, BRASS internals, socket, connector.
Basic description:
- stainless steel housing
- stainless steel crimp ring
- phosphor bronze Bourdon tube
- stainless steel intemals
- with isolated connector
- aluminium dial face
- sealing types: NPT, BSPP, and BSPT
- custom designs are available upon request
Application areas:
- pressure measurement of gas and liquid media that do not attack the copper alloy wetted parts
- outdoor and ambient conditions
- process systems
- compressors
- pumps
- oil field equipment
- pressure washers
- hydraulic equipment, and many more
Table of specifications:
Standard features
| Diameter Sizes | 40mm (1.5") | 50mm (2.0") | 63mm (2.5") | 75mm (3.0") | 100mm (4.0") |
| Range |
Vacuum | 6000psi |
Vacuum | 8000psi |
Vacuum | 8000psi |
Vacuum | 8000psi |
Vacuum | 8000psi |
| Accuracy | ±2.5% | ±2.0% | ±1.6% | ±1.6% | ±1.0% |
Optional features
| Diameter Sizes | 40mm (1.5") | 50mm (2.0") | 63mm (2.5") | 75mm (3.0") | 100mm (4.0") |
| Bottom | V | V | V | V | V |
| Center back | V | V | V | V | V |
| Lower back | V | V | V |
** Custom designs are available upon request **
