Applications: Process control, fuel cells, pumps, hydraulic engineering, spray systems, pneumatics, compressors, fluid applications, machine technology, agriculture. (uses corrosion-resistant stainless steel 316L for any gas or liquid)

Basic Spec.:

• Dial Diameter: 3”(80mm)

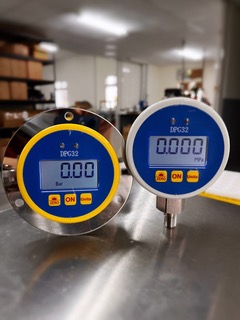

• Mounting type: Bottom connection(DPG80) / Center back connection with front flange(DPG32)
• Pressure range: 0-10bar(150psi), 0-40bar(600psi), 0-250bar(3,750psi), 0-400bar(6,000psi), 0-600bar(9,000psi) as option

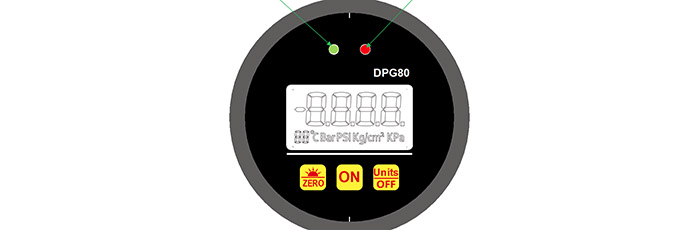

• Pressure unit: Bar, PSI, Kg/cm2 and MPa pressure units selection
• With AISI 316L connector
• Thread: 1/4”、3/8”、1/2”、PT, NPT, PF as option
• Power supply type: Built-in lithium battery (rechargeable), external power supply DC3.7V~5V
• Accuracy: +/- 0.1%
• Working Temp.: -20℃ to 85℃ (-4 F to 185F)
• Waterproof: NEMA 4X (IP65)
• With temperature compensation
• With Over pressure range warning
• With recharging cable for recharging the battery and pressure data output

** Custom designs are available upon request **
