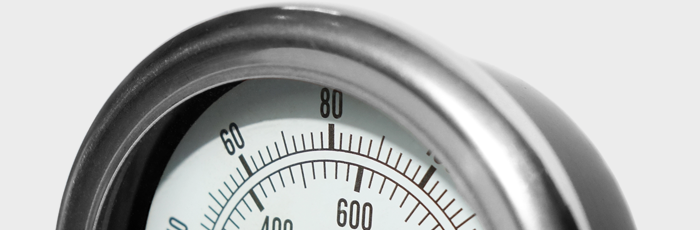

Black finished steel housing stainless steel CRIMP ring, COOPPER Alloy wetted parts.
Basic description:
- black finished stainless steel housing
- stainless steel crimp ring
- glass lens
- phosphor bronze Bourdon tube
- brass internals, socket, and connector
- black finished aluminium pointer
- aluminium dial face
- optional U-shaped clamp
- sealing types: NPT, BSPP, and BSPT
- custom designs are available upon request
Application areas:
- pressure measurement of liquid media that do not clog connection ports, or corrode copper alloy
- where rapid pressure fluctuation is expected
- compressors
- filters
- regulators
- water pumps
- paint sprayers, and many more
Table of specifications:
Standard features
| Diameter Sizes | 40mm (1.5") | 50mm (2.0") | 63mm (2.5") |
| Range |
Vacuum | 6000psi |
Vacuum | 9000psi |
Vacuum | 9000psi |
| Accuracy | ±2.5% | ±2.0% | ±1.6% |
** Custom designs are available upon request **
